ABB 1T 50A IP34 FE with overvoltage protection measuring center
Available online only
Shipping costs starting from
9,90€

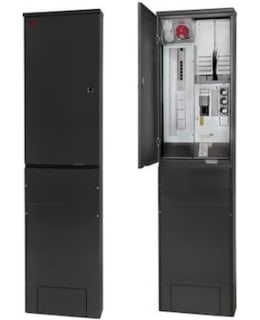

1-T measurement center with fixed stand 400 x 1600 x 170 mm, for surface/flush installation.
VVSK protected sockets: 2 x 116 and 1x316. Remote reading model. Color shade dark gray RAL7024, ,Surge protection Includes: The fixed base includes an equipotential bonding rail. The center can be installed both on the surface and in the sink.
Includes fault current protected sockets, 2 pcs 116 and 1 pc 316. Remote reading model, main switch is after measurement. The center has T2 level overvoltage protection. The color of the center is graphite gray RAL 7024.
Advantages: The round door and compact size make the center more inconspicuous. The dark outdoor measuring center completes the elegant installation on the wall of a dark building. The effect surface prevents e.g. leaving fingerprints on the surface, the so-called orange surface, matt Separate inner ceiling prevents condensation from dripping onto the devices. Standard 50 mm2 Cu/Al universal connectors for the supply cable. The placement of the connectors minimizes the need to stretch the cable Fixed strain relief for the supply cable Fuse accessories for the main fuses are delivered with the center. NäpsäSMART measurement centers are suitable for remote reading. The Cu supply cable of the group center is connected to the upper 25 mm2 poles of the residual current protection switch (left side). The fault-current-protected sockets (3x16A, 2 pcs. 1 x 16A) intended for use during construction are each behind their own circuit breakers, enabling simultaneous large socket loads. Installation instructions included. Equipotential equalization rail installed in the base In wall mounting, sliding margin 10% (slump of the log wall) Detachable supply flange. Multi flange for outgoing cables. In the lower part of the door, there is a loophole for the cables connected to the center's sockets.
As an accessory, ground supports for the stand, (ZX8, 34 170 38)
Technical features:
In the connection space below: With DIN rails
With mounting plate: Yes
Installation method: Surface mounting/partially embedded
Number of fields: 6
Enclosure class (IP): IP3X
Model / Type: Single-layer
Material: Steel plate
Number of grids: 1
Number of module rows: 2
VVSK protected sockets: 2 x 116 and 1x316. Remote reading model. Color shade dark gray RAL7024, ,Surge protection Includes: The fixed base includes an equipotential bonding rail. The center can be installed both on the surface and in the sink.
Includes fault current protected sockets, 2 pcs 116 and 1 pc 316. Remote reading model, main switch is after measurement. The center has T2 level overvoltage protection. The color of the center is graphite gray RAL 7024.
Advantages: The round door and compact size make the center more inconspicuous. The dark outdoor measuring center completes the elegant installation on the wall of a dark building. The effect surface prevents e.g. leaving fingerprints on the surface, the so-called orange surface, matt Separate inner ceiling prevents condensation from dripping onto the devices. Standard 50 mm2 Cu/Al universal connectors for the supply cable. The placement of the connectors minimizes the need to stretch the cable Fixed strain relief for the supply cable Fuse accessories for the main fuses are delivered with the center. NäpsäSMART measurement centers are suitable for remote reading. The Cu supply cable of the group center is connected to the upper 25 mm2 poles of the residual current protection switch (left side). The fault-current-protected sockets (3x16A, 2 pcs. 1 x 16A) intended for use during construction are each behind their own circuit breakers, enabling simultaneous large socket loads. Installation instructions included. Equipotential equalization rail installed in the base In wall mounting, sliding margin 10% (slump of the log wall) Detachable supply flange. Multi flange for outgoing cables. In the lower part of the door, there is a loophole for the cables connected to the center's sockets.
As an accessory, ground supports for the stand, (ZX8, 34 170 38)
Technical features:
In the connection space below: With DIN rails
With mounting plate: Yes
Installation method: Surface mounting/partially embedded
Number of fields: 6
Enclosure class (IP): IP3X
Model / Type: Single-layer
Material: Steel plate
Number of grids: 1
Number of module rows: 2
- EAN: 6410034110332
- SKU: 103113010
- Vendor material number: CJP821
