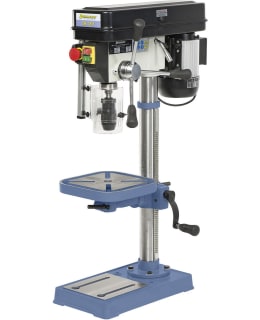

Bernardo BM 25 T 230V bench drill
Robust bench drill with belt drive. Drilling capacity for steel 25 mm. Digital display for drilling depth.
Available online only
Shipping starting from
59,00€
Enter your postal code
The price of the freight is determined based on the postal code. Enter your postal code and you will see what the freight costs for one product. You can see the total freight of several products in the shopping cart!
Freight for one product to postal code 84100 is 59,00€
You can find out the combined freight for several products by adding the desired products to the shopping cart.
Robust bench drill with belt drive. Drilling capacity for steel 25 mm. Digital display for drilling depth.
Standard equipment:
- Digital display for drilling depth and LED work light as standard
- Cast iron pulleys guarantee vibration-free operation
- High-quality bearings in the spindle guarantee a precise drilling trace
- Large drill table with T-grooves
- The drill table tilts +-45°
- Aluminum motor according to IP 54 standards
- High-quality quick-release chuck as standard
- Polished machine base with T-groove
- Clearly placed operating switches make working easier
Standard equipment:
- Quick chuck 1 - 16 mm / B 18
- Turna MK 2 / B 18
- Digital drilling depth display
- LED machine light
- Height-adjustable spindle guard with microswitch
- Separate emergency stop button
- T-slot pieces
- Drilling capacity max. 25 mm
- Drill chuck 1 - 16 mm / B 18
- Morse taper MK 2
- Speed (16) 180 - 2770 rpm
- Distance from spindle to column 180 mm
- Table tilt -45° -+45°
- Distance from spindle to table max. 415mm
- Distance from spindle to stand 605mm
- Spindle movement 80mm
- Pole diameter 72mm
- Table size / T-slots 305x305 mm / 16 mm
- Mounting surface on the stand 205 x205mm
- Motor power 100% 0.75 kW / 230 V
- Motor power 40% 1.1kW / 230 V
- Machine dimensions (W x D x H) 400 x 630 x 990 mm
- Weight approx. 57 kg
- Max. Speed Min-1: 2770
- Warranty: 1 vuosi
- EAN: 2050004447187
- SKU: 101973239
- Vendor material number: 01-1119
