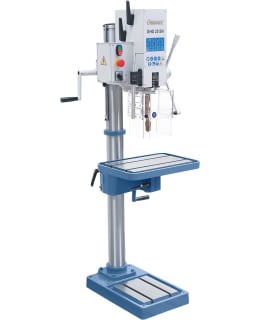

Bernardo GHD 25 SN pole drill with digital display
The powerful gear-driven column drill GHD 25 SN has a solid construction and vibration-free operation. This model is used in workshops, metal workshops and educational institutions.
Available online only
Shipping starting from
59,00€
Enter your postal code
The price of the freight is determined based on the postal code. Enter your postal code and you will see what the freight costs for one product. You can see the total freight of several products in the shopping cart!
Freight for one product to postal code 84100 is 59,00€
You can find out the combined freight for several products by adding the desired products to the shopping cart.
Characteristics
- Digital display of spindle movement for easy working
- Good efficiency and smooth running are the result when helical gears are combined with steel.
- Grooved base for mounting special high workpieces
- The drill head and work table can be turned 360° and their height is adjustable
- High-quality ball bearings ensure rotational accuracy
- Reverse switch for threading
- Helical gear for optimal power transmission
- Sturdy, ground steel poles are designed for demanding use
- The powerful 2-speed motor produces 8 switchable revolutions
- Quick chuck 1 - 16 mm / B 16
- Drill mandrel MK 3 / B 16
- Shrink sleeve MK 3 / 2, MK 3 / 1
- Digital display of spindle movement
- Automatic tool releaser
- Change of direction
- A cover whose height can be adjusted
- Drilling capacity max. 25 mm
- Thread max. M10
- Quick chuck 1 - 16 mm / B 16
- Morse taper MK 3
- Spindle speed(8) 105 - 2900 rpm
- Distance from spindle to column 255 mm
- Distance spindle / table max. 820 mm
- Distance spindle / stand 1235 mm
- Spindle movement 120 mm
- Pole diameter 100 mm
- Table size / T-slot width 500 x 350 mm / 14 mm
- Stand mounting surface 250 x 290 mm
- Motor output power S1 100%0.65 / 1.2 kW (400 V)
- Motor input power S6 40%0.90 / 1.7 kW (400 V)
- Machine dimensions (W x D x H) 600 x 600 x 1800 mm
- Weight approx. 200 kg
- Max. Speed Min-1: 2900
- Ottoteho, W: 1700
- Warranty: 1 Vuosi
- EAN: 9009468063030
- SKU: 102788541
- Vendor material number: 01-1242B
