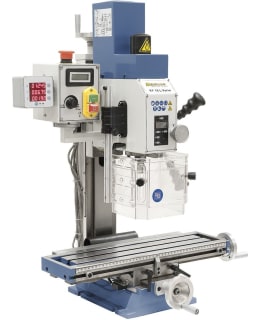

Bernardo KF 16 L Vario milling machine with 3-axis digital display
Available online only
Shipping starting from
59,00€
Enter your postal code
The price of the freight is determined based on the postal code. Enter your postal code and you will see what the freight costs for one product. You can see the total freight of several products in the shopping cart!
Freight for one product to postal code 84100 is 59,00€
You can find out the combined freight for several products by adding the desired products to the shopping cart.
A milling machine for the more demanding hobbyist. A sturdy dovetail structure and a large cross feed table guarantee optimal milling results, with a 3-axis digital display as standard.
Characteristics
Standard equipment:
TECHNICAL INFORMATION
Characteristics
- Stable and vibration-free gray iron frame
- Adjustable dovetail guides for x, y and z axes
- Continuously adjustable speed 50 – 1125 / 100 – 2250 rpm
- The DC motor guarantees optimal torque in the lowest rpm range
- Milling head that can be tilted on both sides -90° – +90° Thanks to the ground gears, operation is very smooth
- Precise adjustment of the spindle during milling using the hand wheel
- Versatile application possibilities, such as e.g.: threading, slot milling, etc.
Standard equipment:
- Drawbar M10
- 3-axis digital display DT 30
- Digital display for milling depth
- Digital display for rpm
- Turna MK 2 / B 16
- EMC filter according to the CE standard
- Height-adjustable spindle guard
- Stepless speed control
- Picture stand as an accessory
TECHNICAL INFORMATION
- Steel drilling: 16 mm
- Cylindrical milling max.: 50 mm
- Pin milling max.: 16 mm
- Distance from spindle to column: 170 mm
- Distance from the spindle/to the table max: 275 mm
- Spindle speed, stepless: 50 - 1125 / 100 - 2250 rpm
- Spindle taper: MK 2
- Table: 500×140 mm
- Table mobility (x/y): 365/140 mm
- Milling head inclination: -90° ...+90°
- Milling head height adjustment: 200 mm
- T-Slots: 10 mm
- Motor power 100%: 0.50 kW / 230V
- Motor power 40%: 0.80 kW / 230 V
- Machine dimensions (W x D x H): 610 × 500 × 820 mm
- Weight approx.: 65 kg
- Product number: 02-1021A
- Max. Speed Min-1: 2250
- Warranty: 1 vuosi
- EAN: 9009468056049
- SKU: 102452319
- Vendor material number: 02-1021A
