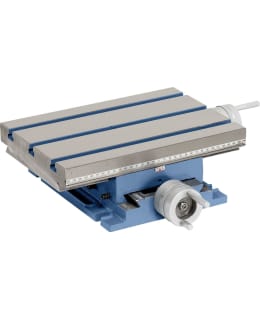

Sturdy and high-quality cross feed table for drilling machines and milling machines. Large and high-quality cross feed table for drilling machines and milling machines. Table size 330 × 220 mm.
TECHNICAL INFORMATION
KT330 x 220
Length 430mm
Width 375mm
Height 110 mm
T-slots 12 mm
Number of T-grooves 3 pcs
Table length 330mm
Table width 220mm
Max. piece weight 55kg
The width of the washer is 215mm
Base plate length 280mm
Movement x-axis 190mm
Movement y-axis 100mm
Scale on the handwheel 0.01 mm
Weight approx. 23 kg
Product number 27-1104
Warranty:
1 Vuosi
EAN:
9009468051945
SKU:
102788865
Vendor material number:
27-1104
Only available in the online store, not available in classic stores
