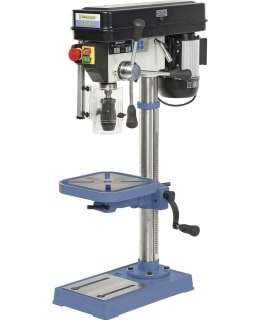

Bernardo TB 16 T bench drill
A small and handy desktop drill for hobbyists. Drilling capacity for steel 16 mm.
Available online only
Shipping starting from
49,00€
Enter your postal code
The price of the freight is determined based on the postal code. Enter your postal code and you will see what the freight costs for one product. You can see the total freight of several products in the shopping cart!
Freight for one product to postal code 84100 is 49,00€
You can find out the combined freight for several products by adding the desired products to the shopping cart.
A small and handy desktop drill for hobbyists. Drilling capacity for steel 16 mm.
Standard equipment:
- Precise bearings in the spindle.
- The drill table tilts and turns around the post.
- Powerful aluminum motor according to IP54 standards.
- Ergonomically placed operating levers make it easier and faster to use the drill.
- Larger pieces can be attached to the treated stand.
- A precise quick-release chuck is part of the standard delivery.
Standard equipment:
- Quick chuck 1 - 16 mm / B 16
- Turna MK 2 / B 16
- Height-adjustable spindle guard with microswitch
- Separate emergency stop button
- T-slot pieces
- Drilling capacity max. 16 mm
- Drill chuck 1 - 16 mm / B 16
- Morse taper MK 2
- Speed (12) 300 - 2550 rpm
- Distance from spindle to column 155 mm
- Table tilt -45° -+45°
- Distance from spindle to table max. 445mm
- Distance from the spindle to the stand 600mm
- Spindle travel 65 mm
- Column diameter 58 mm
- Table size / T-slots 245x245 mm / 16 mm
- Mounting surface on the stand 185x 200 mm
- Motor power 100% 0.55 kW / 230 V
- Motor power 40% 0.80 kW / 230 V
- Machine dimensions (W x D x H) 400 x 570 x 920 mm
- Weight approx. 36kg
- Max. Speed Min-1: 2550
- Ottoteho, W: 850
- Warranty: 1 vuosi
- EAN: 9009468044039
- SKU: 101973227
- Vendor material number: 01-1031
