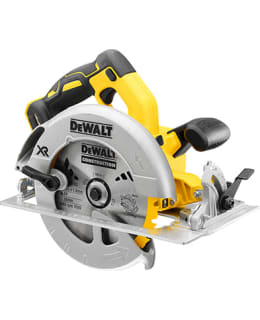

Dewalt XR DCS570N 18V circular saw frame

The solid structure of the circular saw reduces vibrations and extends the service life. Additional handle for safe two-handed working. Unloaded rotation speed 5500 rpm, blade diameter 184 mm, hole 16 mm. Bevel cut 57°, maximum cutting depth 90° 64 mm. A good balance provides safe and less tiring work for the user. Standard 24-tooth precision blade, side guide, blade clamp and vacuum cleaner connector.

Characteristics

Precise adjustment of the sawing depth up to 65 mm using the scale
Universal saw for cutting and miter sawing of wood and building materials
A good, twisting motor is durable and strong when sawing various building materials.
The stable structure reduces vibrations and extends the service life
Additional handle for safe two-handed working
Stepless miter angle adjustment up to 57°
Thanks to the good balance, the saw is safe and does not tire the user

Standard

24-tooth precision blade
side control
blade clamp
vacuum cleaner connector

Specifications

No-load speed 5500 rpm
Blade diameter 184 mm
Hole 16 mm
Bevel cut 57 °
Max. cutting depth 90° 64 mm
Max. cutting depth 90° (with guide rails) NA e.g
Max. cutting depth 45° N/A e.g
Max. cutting depth 45° (with guide rails) NA e.g
Weight 3.6 kg
Length 355 mm
Height 245 mm
Vibration of the tool 2.5 m/s2
Deviation K 1 (vibration) 1.5 m/s²
Sound pressure 92 dB(A)
Uncertainty K 1 (sound) 3 dB(A)
Acoustic pressure 103 dB(A)
Sound power uncertainty 3 dB(A)

The product belongs to the Dewalt XR cordless tool system. Dewalt's XR cordless tools are designed especially for heavy professional use and for renovators and builders who value excellent quality. Dewalt's XR battery tools use 18V XR batteries and it is also possible to use 18/54V high capacity batteries. Dewalt batteries are very durable. Find the most suitable top-quality Dewalt XR 18V professional power tools in Kärkkäinen's selection.

Kärkkäinen Oy is an official Dewalt dealer and you can register for an extended 3-year warranty for battery tools purchased from us within 4 weeks of the purchase date. Register the warranty here https://www.dewalt.fi/3/.
