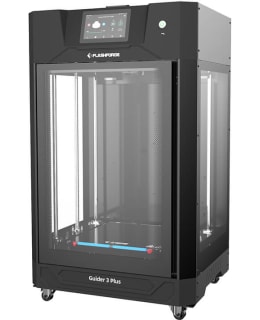

Flashforge Guider 3 Plus 3D Printer FDM 3D printer

Guider 3 Plus is a professional-grade 3D printer, featuring high-speed printing, high model quality output, quiet and smooth operation.

• High Speed & Low Noise 250mm/s ≤50dB
• Excellent Quality ±0.15mm
• Larger Build Volume 350x350x600mm

Guider 3 Plus is a professional-grade 3D printer, featuring high-speed printing, high model quality output, quiet and smooth operation. Equipped with a full range of multi-platform intelligent management system for small business, studio, universities and laboratories, Guider 3 Plus assists engineers and designers in rapid prototyping.

Superior Model Performance
The newly designed internal structure improves the printing efficiency and offers better presentation of delicate structures.
The dual Z-axis ball screw design ensures accurate positioning of printing each layer of the model, smooth model surface and better print quality.

Sealed Filament Chamber Containing Desiccant
Containing silica gel desiccant inside, the dual sealed filament chambers on the back will effectively ensure that filaments are in a sealed and dry environment both during the printing process and in the idle state.
Under general environment, the humidity can be kept below 20% within 5 days by placing 3 packs of desiccant in the filament chamber.

Intelligent Multi-platform Management
It supports remote multi-platform management of 3D printers via FlashPrint 5, FlashCloud, and Polar Cloud. With available online printing and real-time monitoring, it realizes convenient and efficient integrated equipment management, and worry-free production.

Intelligent Maintenance Assistant
The equipped maintenance assistant provides solutions to common printing problems, saves communication time and realizes efficient maintenance.

Parameters
Extruder Quantity: 1
Printing Precision: ±0.15mm or 0.002mm/mm
Positioning Accuracy: X/Y-axis 0.011mm; Z-axis 0.0025mm
Layer Thickness: 0.05 ~ 0.4mm
Build Volume: 350 x 350 x 600mm
Nozzle Diameter: 0.4 (0.4/0.6/0.8mm)
Nozzle Type: Stainless Steel Nozzle
Printing Speed: 10~250mm/s
Maximum Extruder Temperature: 320℃
Maximum Platform Temperature: 120℃
Supported Filament: PLA / PETG / ASA / ABS / PC / PA / PLA-CF / PETG-CF / PETG-GF / PA-CF / PA-GF
Power Supply: AC100-240V / DC24V / 6.25A, 650W
Device Size: 635.5(L)*590.5(W)*1060(H)mm
Packaging Size: 775(L)*690(W)*1235(H)mm
Slicing Software: FlashPrint
Input/Output File Format:
Input: 3MF / STL / OBJ / FPP / BMP /
PNG / JPG / JPEG File;
Output: GX / G / Gcode
Printing Connection: USB Cable / U Disk / Ethernet / Wi-Fi
Certification: CE / FCC / RoHS
Working Temperature: 15-30℃
Compatible Operating System: Windows XP / Vista/7/8/10 / Mac OS
Compatible Slicing Software: Slic3r / Skeinforge / Cura (Need to set up)
Touch LCD Screen: 7-inch
Printing Bed: Magnetic Flexible Printing Bed
