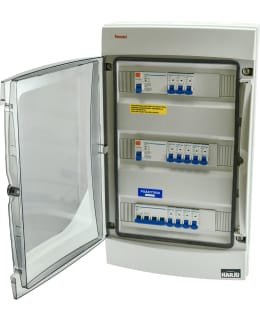

Harju IP65 P4V8J12MU 3-line group center
Ready-to-install 3-line Harju group center
Shipping costs starting from
4,90€
Features:
- surface mounted
- easy to install, suitable for indoors and outdoors
- possibility to easily add components (spare space 10 modules), manufactured in Finland.
Technical information:
- enclosure class IP65
- impact resistance IK08
- nominal current 50 A
- protectively insulated class 2
- feed-through blanks at the bottom, top and sides
- dimensions: 563 x 326 x 150 mm
Central components:
- main switch 63A, 4-pole
- circuit breakers 4 pcs. C10 A, 6kA 1-pole, 1. residual current circuit breaker 4-pole 40A/30 mA, behind which 3 pcs. circuit breakers C16 A and 2 pcs. circuit breakers C10 A
- 2nd residual current circuit breaker 4-pole 40A/30 mA, behind which 3 circuit breakers C16 A
- N rail x3 pcs and PE rail
- surface mounted
- easy to install, suitable for indoors and outdoors
- possibility to easily add components (spare space 10 modules), manufactured in Finland.
Technical information:
- enclosure class IP65
- impact resistance IK08
- nominal current 50 A
- protectively insulated class 2
- feed-through blanks at the bottom, top and sides
- dimensions: 563 x 326 x 150 mm
Central components:
- main switch 63A, 4-pole
- circuit breakers 4 pcs. C10 A, 6kA 1-pole, 1. residual current circuit breaker 4-pole 40A/30 mA, behind which 3 pcs. circuit breakers C16 A and 2 pcs. circuit breakers C10 A
- 2nd residual current circuit breaker 4-pole 40A/30 mA, behind which 3 circuit breakers C16 A
- N rail x3 pcs and PE rail
- Warranty: 2 vuotta
- EAN: 6438140939524
- SKU: 102363853
- Vendor material number: 93952
