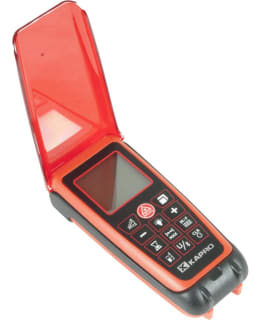

This laser rangefinder is a professional device that makes measuring distances, areas, cubes and angles effortless and simple.



The cover on top of the device acts as both a shield and a laser beam amplifier. This allows you to view the beam through the cover in bright conditions without the need for separate laser glasses. Thanks to the Bluetooth feature, the device can be connected directly to a laptop or mobile phone, for example, so that the measured distances can be automatically transferred to a data logger.



Rubber shock absorbers reduce the risk of the device breaking if it is dropped.





In addition to traditional distance measurement, the device can also measure areas, volumes or degrees without the need for manual calculations. Use the buttons on the device to select the desired measurement style and perform the measurements according to the instructions provided by the device.

Bluetooth application

The device can be connected to computers or mobile devices via a bluetooth connection. You can then use your mobile device to take pictures of the measurement points and add the measurement results directly from your K7 device to your picture.



    Download and install the MEASURE MATE app from https://play.google.com/store/apps/details?id=com.precaster.measuremate&hl=en_US&gl=US

    Launch the app

   Press and hold the bluetooth button on your device

    Press the bluetooth icon in the app to start searching for the device

    Press the device name in the app when the device is found.

    You can now take pictures with your mobile device and add the desired measurement results directly to the pictures based on the instructions provided by the device.



Using the device

The range and accuracy depend on how well the laser reflects off a particular surface and the reflectivity of the object. Range and accuracy can be improved by increasing the contrast of the laser against the illumination of the reflecting surface or by using a laser reflector (Kodak white).



When measuring distances greater than 10 m in adverse conditions, a deviation of ±0.25 mm/m must be taken into account. Bright sunlight, uneven surfaces, very short distances or too weak or too strong reflected signals can cause deviations larger than ±10 mm. In extreme cases, results may be unreliable.





Distance measurement - Traditional distance measurement

Adding and subtracting results - Add and subtract between two measurements





Dynamic (continuous) measurement - Continuously measures results in motion


Measurement timer - Timed measurement



Surface area measurement. The device automatically calculates the surface area from the measurements taken

Volume measurement - The device automatically calculates the volume from the measurements taken

Direct measurement - Calculates the height of an object using Pythagorean theorem with two measurement points















Designing a stack - Allows you to specify a specific dimension, when measuring objects that are equidistant from each other. The device will signal when you are at the next target.






Measurement reference point - The product has three reference points: at the back, in the middle (tripod mounting hole) and at the front.





Memory - The Kaprometer K7 can store up to 20 measurements in memory.



















Features:





Indoor measurement up to 70 m (230') distance



Outdoor measurement range 100 m



Measures the shortest distance to the target by dynamic (continuous) measurement



Backlit LCD display



Measures surface area and volume



Direct measurement using Pythagorean theorem



Option to select three reference points



Advanced memory function



Resistant rubber cover



1/4" hole for tripod mounting



Precision: 1.5 mm (0.00492126')



Technical specifications



   Measuring range 0.5 m-70 m

   Resolution 0.001 m

    Accuracy ±1,5 mm (0,00492126)

    Measurement speed 0,5 seconds

    Laser Class II, 650 nm, <1mW

    Batteries AAA batteries x2

    Battery life Up to 10 000 measurements

    Dimensions 120 mm x 55 mm x 32 mm

    Operating temperature -5 °C-40 °C (23 °F-104 °F)

    Storage temperature -20 °C-60 °C (-4 °F-140 °F)

    Automatic switch-off: laser 30 seconds

    Automatic switch-off: device 180 seconds

    Seed size 25mm@30m




Accessories:

Instructions for use English
