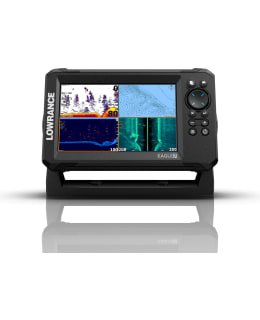

The Lowrance EAGLE® is a multi-functional device designed for fishing and boating, which is easy to use thanks to its powerful performance, versatile sonar technologies and an accurate and bright IPS display. In addition to the automatically adjusting sonar, SideScan and DownScan Imaging™ technologies, the EAGLE® series also includes the FishReveal™ function, which facilitates fish detection by utilizing the advantages of the Lowrance CHIRP sonar and DownScan Imaging™ technology on one screen. EAGLE® uses completely redesigned SlitShot HD™ or Tripleshot HD™ sonar sensors, which produce an extremely accurate image of underwater scenes on the screen. The EAGLE® series also includes real-time Genesis Live mapping, which allows you to map your best fishing spots and unknown water areas in real time. You can create and save your own map directly on the C-MAP map card or on an empty memory card.

Lowrance EAGLE® is a really easy-to-use and versatile echo sounder/chart plotter for fishing and all kinds of movement on the water. The EAGLEN® IPS screen offers a very clear and easy-to-interpret image in all conditions and even in direct sunlight. Thanks to EAGLEN®'s new IPS screen, the image remains clear even with polarized sunglasses. EAGLE® provides you with information that makes your boating on the water safe and enjoyable. You can easily monitor the map, sonar, depth reading, position information, battery voltage and other critical boat information on the same screen, so you get a quick overview of the current situation.

Thanks to EAGLEN® fully automatically adjusting sonar, you can now focus more on fishing and boat control and spend less time making adjustments. The device automatically adjusts the settings according to changing conditions and thus always guarantees the best possible sonar image. Thanks to the new screw-locking connector system, the wires stay securely in place in changing weather conditions, and therefore EAGL is easy and quick to install.

The Lowrance® Splitshot HD™ transducer is perfect for the angler who wants a clear view from under the boat. The sensor has powerful and proven Lowrance® CHIRP frequencies and DownScan Imaging™ and FishReveal™ technologies.



Features:

• Bright 7-inch IPS screen
• Intelligent FishReveal™ view
• Real-time Genesis Live – mapping over the C-MAP map or onto an empty memory card
• Lowrance® Tripleshot HD™ 3-in-1 sonar with high CHIRP frequency, SideScan, DownScan Imaging™ and FishReveal™ technologies
• New color palettes for echo views
• Automatic adjustable sonar
• Easy-to-use menus in Finnish
• Optimized keyboard and use of the most important functions with one touch
• C-MAP®, C-MAP Genesis or Navionics® as map options
• MicroSD card slot (32gb max)
• Preloaded global base map
• Storage: 3000 waypoints, 100 routes & 100 tracks
• Easy quick installation bracket and possibility of flush mounting
• Waterproof class IPX7, with the card reader cover closed
• 7" Screen resolution 800 x 480, brightness 1000 NITS
• Operating temperature range -15 °C to +55 °C
• Operating voltage 12v DC (10.8-17VDC)
• Typical power consumption with a 7" device 0.55A


Language options: Finnish, Swedish, English (UK & US), Afrikaans, Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (Brazil & Portugal)


The package contains:

• HOOK Reveal combination device
• Tripleshot HD™ 3-in-1 sonar transducer
• Mounting bracket
• Power cord and fuse
• English user manuals (Finnish user manuals available for download at www.lowrance.com)
