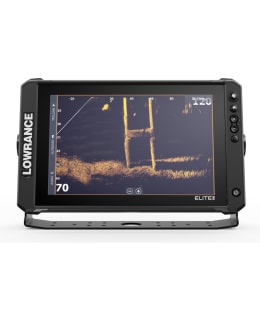

Lowrance Elite FS – the complete electronics system for every fishing boat.

The new Lowrance FS (Fishing System) offers you even easier fishing and the opportunity to use all of Lowrance's most revolutionary sonar technologies, such as Active Target™ live sonar, Active Imaging™ 3-in-1 sonar sensor and FishReveal™ target detection. Lowrance Elite FS now brings with it for the first time to the Elite series not only a fully supported NMEA2000 network, but also an Ethernet network, which enables versatile networking and the connection of accessories to the device. You can manage and connect Elite FS to your device, e.g. autopilot, bow electric motor, radar, VHF phone, SonicHub®2 audio system and monitor your boat's engine data. Build a complete fishing system in your boat around the Elite FS device!

The new multi-touch Elite FS device has Lowrance's familiar and easy-to-use user interface. The Lowrance Elite FS's bright, high-resolution display is clearly the best yet seen in the Elite series. The flat glass screen with an anti-reflective coating provides excellent visibility in all conditions.

The Lowrance Elite FS has been created to make fishing and echo sounding even easier and more efficient. It features support for Active Target™ live sonar, ultra-precise Active Imaging™ sonar, FishReveal™ target spotting, built-in Genesis Live charting, and many other features that make fishing on the water even easier. By connecting the Elite FS to the Active Target™ live sonar, a very accurate and detailed underwater view can be monitored in complete real time.


Features:

• Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan) compatibility
• Active Target™ Live compatibility
• Livesight™ Live compatibility (requires PS-1 module)
• Lowrance HALO probes - compatibility
• Lowrance Outboard Pilot autopilot compatibility
• Communication networks: NMEA 2000 (Micro-C) x1 and Ethernet x1
• Black (9-pin) transducer port
• C-MAP® Genesis Live
• Smartphone notifications
• Intelligent FishReveal™ target detection
• C-MAP® Easy Routing, Navionics Autorouting functions
• Easy to use and fast
• Bright screen with even better resolution and a wider viewing angle
• Built-in CHIRP and Broadband Sounder®
• Control of the Lowrance Ghost® bow electric motor from the touch screen
• MotorGuide® Xi3 and Xi5 - control of the bow electric motor from the touch screen
• Touchscreen control of Power-Pole® shallow water anchors
• Integrated wireless Wi-Fi connection and Bluetooth
• SonicHub®2 compatibility
• Support for NMEA 2000® engines
• Improved surface noise suppression allows you to see more fish that are close to the surface
• The quick access control bar provides one-touch access to system settings
• Micro SD card slot (max. 32GB)
• Storage: 3000 waypoints, 100 routes & 100 tracks
• Easy flush mount or mounting bracket
• Waterproof class IPX7
• Screen resolution 800 x 480
• Operating temperature range -15 °C to +55 °C
• Operating voltage 12v DC (10.8-17VDC)
• Typical power consumption 2.0A (9" device)
• Language options: Finnish, Swedish, English (UK & US), Afrikaans, Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (Brazil & Portugal)

The package includes:
• Elite FS combination device and screen protector
• Active Imaging™ 3-in-1 transom sensor
• Mounting bracket
• Power cord and fuse
• Instructions for use (Finnish instructions available for download at www.lowrance.com)
