Mini SCR 65A charging relay
Shipping costs starting from
3,90€

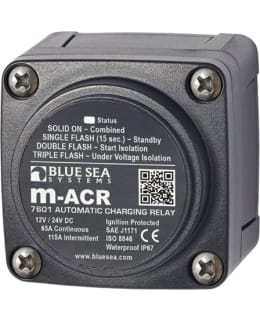

MINI ACR charging relay for 65 A chargers with automatic voltage detection (12-24 V).
Automatically combines separate battery banks into one unit when charging is in progress.
When there is no more charging and the battery voltage drops, the charging relay automatically separates the fun battery from the starter battery.
Connects battery banks together when the voltage is 13.6V(27.2V) 30sec or 13.0V (26.0V) 2min and separates 12.35V(24.7V) 10sec or 12.75V(25.5V) 30sec.
Protection IP67.
Automatically combines separate battery banks into one unit when charging is in progress.
When there is no more charging and the battery voltage drops, the charging relay automatically separates the fun battery from the starter battery.
Connects battery banks together when the voltage is 13.6V(27.2V) 30sec or 13.0V (26.0V) 2min and separates 12.35V(24.7V) 10sec or 12.75V(25.5V) 30sec.
Protection IP67.
- EAN: 632085076016
- SKU: 102315372
- Vendor material number: 9514801164
