Revo 3.2 Frisbeegolf throwing platform

Revo 3.2 Details

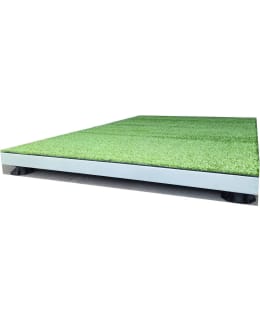

Revo 3.2 is a launching platform equipped with a self-supporting steel composite frame. The product's development has taken into account the challenges facing the launch site; size, smoothness, durability, ease of installation and also price. The platform is very suitable for different ground surfaces and can also be installed on a sloping surface. Also suitable for installations partially underground, if the installation site requires it. The throwing platform can also be adjusted from its legs, so possible rooting will not cause problems. Rainwater is directed into the environment in a controlled manner and the airy structure ensures quick drying. If necessary, the launch platform can also be moved, so changes to the track can be made for competitions, for example. A border has been built around the throwing platform to bring elegance and it is possible to install advertisements on it. Revo 3.2 is a 3 meter long and 2 meter wide platform. The height varies depending on the installation, from ground level -> up to 30 cm high with standard legs. The throwing platform is designed to be used with the artificial grass mat, which is delivered with the platform.

Quick to install
The launch pad is delivered in pre-stacked parts, and its assembly and installation is a quick procedure. Piling does not require large machines, large tools or earth materials. The installation location of the platform can also be on a slope and it can be partially dug into the ground.

Durable construction
The body of the throwing platform is designed to withstand the weight, strain and wear and tear on it. The frame of the platform is a 100mm strong steel composite plate designed and manufactured for frisbee golf use. The artificial grass and sand installed on top of the platform work together with the cover as a flat platform for throwing.

Ventilated construction
Outdoor conditions have been taken into account in the design of the platform and the structure is designed to be ventilated. Air can flow under and over the substrate, drying the substrate quickly after rain. This ensures safe use of the launch pad when conditions change. After winter, the snow also melts faster, because the sun's energy is enough to heat the roof structure and the ventilation dries the moisture faster.

Artificial grass
The sand artificial turf installed on top of the base is an essential part of safe and high-quality throwing. The flat surface and the even friction of the sand artificial turf create the best possible conditions for the thrower to get his performance done as well as possible.

Adequate size
The throwing platform is 3 meters long and 2 meters wide. The sufficiently large size guarantees the suitability of the platform for a large part of the fairways. The size allows for good momentum for the throw, as well as staying on the platform after the throw.

Off the ground
When the launch platform is raised off the ground, better properties are obtained than a launch site built on the ground. Portability, water control, ventilation, and advertising spots are features that cannot be achieved with a ground-based throwing platform. These are a big advantage when considering the whole.

Portability
It is possible to move the launch pad temporarily or permanently if the situation requires it. Depending on the circumstances, sometimes there are situations when the throwing place needs to be moved. Such situations can be, for example, route changes made for the competition, changes made for the winter or some other reason. The platform does not need to be dismantled for transfer when the lifting instructions are followed.

• Product length/depth: 300cm
• Product width: 200cm
• Product height: 10cm
• Advertising spaces
• Self-supporting frame
• Adjustability: The throwing platform is equipped with eight adjustable legs.
• Safety: Revo 3.2 meets the demanding criteria and is therefore a safe choice for a throwing platform.
• Water control
• Advertising spaces
