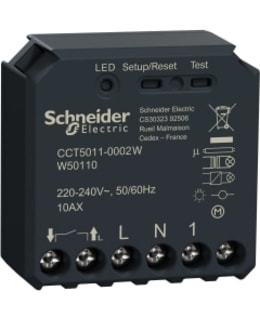

Schneider Electric Wiser 10AX switch module
The Zigbee relay module installed in the control box turns a traditional switch into a smart one. In this way, intelligence can be added to the switch of any furniture set, as long as it can be turned into a button with an impulse spring.
Available online only
Shipping costs starting from
3,90€
The Zigbee relay module installed in the control box turns a traditional switch into a smart one. In this way, intelligence can be added to the switch of any furniture set, as long as it can be turned into a button with an impulse spring. The same load/relay module can be controlled with ten different spring buttons.
Usage examples
Usage examples
- 1: If you want to control the lighting intelligently also on the outdoor terrace, using different situations and timings, you can install an intelligent relay module in the device box behind the IP44 switch.
- 2: When, for one reason or another, the cabling is not suitable for the switches, you can install the Wiser relay module in the ceiling box in connection with the lamp and only the wireless button (2622106) on the wall. The solution does not require a central unit to operate.
- Can be used as a traditional switch or controlled wirelessly.
- Can be connected to other Wiser products even without a central unit and phone app.
- Take a closer look at the possibilities of using the Wiser smart home system at the following link: https://www.se.com/fi/fi/home/smart-home/local/wiser/homeowner.jsp
- Rated voltage: 220-240 V AC, 50/60 Hz
- Nominal current: 10 AX
- Potential-free output
- Loads:
- LED: 200W
- Light bulbs: 2200W
- Halogens: 2000W
- 12V halogens: 1050VA (electronic transformer) 500VA (iron core transformer)
- Capacitive load: 10A, 140mF
- Energy-saving lamps: 100W
- 1-phase motors 230V: 1000VA
- Dimensions (H x W x D): 43 × 43 × 22 mm
- Installed in a recessed device box or a high surface-mounted box
- A neutral wire is required
- IP class: IP20, for indoor use
- Certification: Zigbee 3.0
- Warranty: 2 vuotta
- EAN: 3606481909763
- SKU: 102637631
- Vendor material number: CNM735
