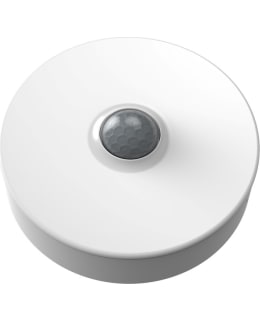

Schneider Electric Wiser ceiling motion sensor
Available online only
Shipping costs starting from
3,90€
The wireless motion detector can be placed freely and can be used to control all Wiser devices wirelessly using Zigbee. It provides information about the detected movement and the brightness level of the room's lighting, which can be used to implement automations. If necessary, the device sends a notification to the phone about detected movement, for example when you are away.
Usage examples
Usage examples
- The motion detector is installed in the hall, where the Wiser LED controller controls the lighting. In this way, the lights can be turned on directly with the desired brightness, for example according to the time of day: dim at night, etc.
- The same motion detector can also wirelessly turn on the lights on the entire floor, for example.
- Take a closer look at the possibilities of using the Wiser smart home system at the following link: https://www.se.com/fi/fi/home/smart-home/local/wiser/homeowner.jsp
- The detector sees movement from a distance of 5m with a 110° beam. That is, when installed on the ceiling at a height of 2.5m, the diameter of the beam is about 4m near the floor. Can also be installed on the wall. Installation takes place with a sticker or screws, which can all be found in the product package.
- Bus interface radio frequency: Yes
- Two-way radio frequency: Yes
- Installation method: surface mounting
- Includes bus connection: Yes
- Optimal installation height (m): 2.5 m
- Maximum width of detection area (m): 2 m
- Maximum length of detection area (m): 2 m
- Diameter of observation area (m): 4 m
- Vertical observation angle (°): 0 °
- Horizontal viewing angle (°): 0° – 360°
- Number of channels: 1
- Battery: 3 V DC (1 lithium button cell battery CR 2450) included in the package
- Battery life up to 5 years (may vary depending on use, number of software updates and installation environment)
- Product dimensions: diameter 75 mm, height 26.6 mm
- IP class: IP20, for indoor use
- Certified Zigbee 3.0 device
- Warranty: 2 vuotta
- EAN: 3606489527136
- SKU: 102637655
- Vendor material number: CNM730
