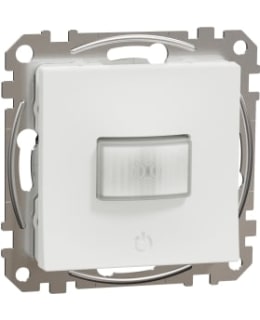

Schneider Electric ZB Exxact PIR10A 160 USE motion detector
The motion sensor with relay, light level measurement and integrated button enables versatile and smooth use. In addition, the device supports additional features and wireless control provided by the Wiser application.
Available online only
Shipping costs starting from
4,90€
Motion sensor with relay , lighting level measurement and integrated button enables versatile and smooth use. In addition, the device supports additional features and wireless control provided by the Wiser application. A certified Zigbee 3.0 product that also works as an independent device. Use of additional features requires a smartphone and a Wiser central unit (2622118).
Characteristics
Characteristics
- Detection range: 160 degrees, up to 8 meters away
- Turns on the lights based on movement and prevailing brightness (5-1000lux)
- Timing range: 1s-30min
- The lights can also be operated with an integrated button at any time, either timed or completely manually
- Also supports separate spring buttons
- Supports two slave motion detectors
- The sensitivity of motion detection can be adjusted (high/medium/low)
- Installed in the instrument box without separate transmitters or receivers
- Requires a neutral wire
- Nominal voltage: 230 V AC, 50 Hz
- Nominal current: 10 A, cos φ = 0.6
- IP class: IP20, for indoor use
- Certificate: Zigbee 3.0
- Loads:
- LED: 200W
- Light bulbs: 2200W
- Halogens: 2000W
- 12V halogens: 1050VA (electronic transformer) 500VA (iron core transformer)
- Capacitive load: 10A, 140mF
- Energy-saving lamps: 200W
- 1-phase motors 230V: 1000VA
- Warranty: 2 vuotta
- EAN: 3606481497154
- SKU: 102637643
- Vendor material number: CNM722
