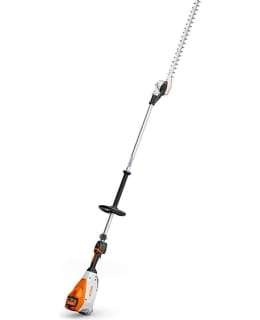

STIHL HLA 135 telescopic hedge trimmer frame

The most powerful cordless hedge trimmer in the STIHL range for professional use in noise-sensitive areas. For cutting shrubs and plants close to the ground, from trimming to pruning. The cutting blade can be adjusted 145° without tools for top, side and bottom cuts. Double-sided sharpened blades for better cutting results. Intuitive operating handle with LED display. Ready for STIHL Smart Connector 2 A. Total length 249 cm. Delivery without battery and charger.

Technical information
Nominal voltage V 36
Weight kg 1) 5.6
Battery life with AR 1000 battery min 2) up to 163
Cutting length cm 60
Sound pressure dB(A) 3) 85
Tooth spacing eg 34
Blade speed 1/min 4,000
Total length cm 249
Sound power dB(A) 3) 96
Battery life with AR 2000 L battery min 2) up to 345
Battery life with AP 100 battery min 2) up to 32
Battery life with AP 300 battery min 2) up to 77
Battery life with AR 3000 L battery min 2) up to 520
Battery life with AR 3000 battery min 2) up to 369
Battery life with AR 2000 battery min 2) up to 310
Battery life with AP 300 S battery min 2) up to 90
Battery life with AP 200 battery min 2) up to 64
Vibration level left/right m/s² 4) 2.5/3.3

Standard equipment

Ready for Smart Connector 2 A
The STIHL Smart Connector 2 A can be connected directly to the device easily, because the devices have a standby place (connector) for that. The new battery tools can thus be easily integrated into the STIHL Connected system.

Attaching the shoulder strap
The HLA has a special loop for the shoulder strap

Round handle
Offers great freedom of movement and easy handling in tight spaces

Blade system
Double-sided sharpened blades ensure efficient and precise cutting - even in thicker branches.

Lightweight magnesium gearbox, rotatable 145°
The cutting blade equipped with a light magnesium gear can be adjusted in steps of up to 145 ° in two directions. To save space, the cutting blade can be turned parallel to the handle during transport and can also be securely locked.

Ergonomic steering handle with speed settings
The speed can be adjusted in three steps using the ergonomic control handle with LED display. This ensures energy-efficient work and long operating times.

Air filter with metal mesh
The easy-to-clean air filter guarantees a long service life and optimal engine cooling

Device battery compartment
AP batteries can be inserted directly into the device's battery slot. This makes working even more mobile and flexible.
