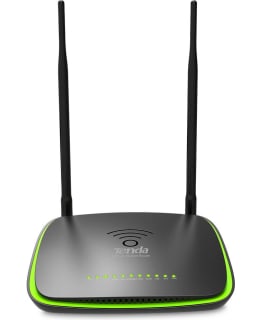

Tenda D1201 WLAN router

Tenda D1201 is a high-performance ADSL router with a 1200M speed AC series WLAN base station with a built-in Gigabit 4-port Ethernet switch and SPI firewall.

The Tenda D1201 ADSL router is equipped with advanced lightning protection: the device can withstand voltage spikes from the telephone network up to 6000V!

In addition to good performance, the new D1201 ADSL router has versatile QoS/Multicast/routing features, so the router can also handle heavier and time-critical Internet IPTV broadcasts and VoIP calls. D1201 also offers minimal delays for online gaming.

Product package contents: ADSL router, power supply, Ethernet intermediate cable, splitter, RJ-11 telephone cables, quick installation instructions and manual (CD).

Technical information:
• ADSL/ADSL2/ADSL2+ router
• ADSL speeds: 24Mbit/s (downstream), 3.5Mbit/s (upstream)
• Supports bridging and routing connections
• ADSL standards:
- Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1(G.DMT)
- ITU-T G.992.2(G.Lite)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.1
- ITU-T G.992.3 (G.dmt.bis) Annex A/L/M
- ITU-T G.992.4 (G.lite.bis)
- ITU-T G.992.5 Annex A/M
- ATM Forum UNI3.1/4.0
- PPP over ATM (RFC 2364)
- PPP over Ethernet (RFC2516)
- IPoA (RFC1577)
- MER/IPoE (RFC 1483 Routed)
- Bridge (RFC1483 Bridge)
• LAN: 3x 10/100/1000Base-T
• WAN/LAN: 1x 10/100/1000Base-T (switchable)
• WLAN:
- Standards: IEEE 802.11ac/n/g/b/a
- Frequencies: 2.4 and 5GHz
- Speeds: AC: 1200M, N: 300M
- Encryption: WPA/WPA2, WPA-PSK/WPA2-PSK, WEP, QSS
- Antennas: 2x 7dBi (removable), 2x 3dBi (internal)
• IGMP snooping, IGMP multicasting, 802.1d
• QoS features
• TR-069, IPV6, IPTV, bandwidth limitation
• VLAN: Port based, Tagged
• Brand LEDs: Power/SYS/Internet/DSL/WLAN/WPS/LAN/USB
• Software upgradeable
• Operating voltage / power source: 12VDC @ 1.5A
• Operating temperature range: 0...+40C
• Dimensions: 192 x 192 x 40mm
• Approvals: CE/RoHS/FCC
