Tormek SVS-50 multifunction controller
Shipping costs starting from
4,90€
For turning chisels, as well as for parting and hollowing and roughing chisels. Straight spindle chisels with a maximum width of 50 mm.

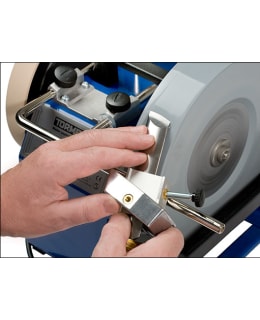

This patented Grinding Guide includes a body (1) and two interchangeable chucks: one closed (2) and one open (3). The chucks can turn and can be locked with a knob screw (6) at any angle between 0 and 45°. Turning chisels have symmetrical bevels on both sides. With this sanding guide, both bevels can be sanded without removing the tool from the guide. Turning the sanding guide upside down enables symmetrical sanding of bevels.
Closed chuck for turning chisels. The tool is fastened with a side knob (4). The upper knob (5) is not used.
The open chuck is designed for carving chisels and tools where the edge is ground transversely to the spindle. The tool is fixed with the top knob (5) of the frame. Since the chuck can be turned, it can also be used for short bevel chisels.
This patented Grinding Guide includes a body (1) and two interchangeable chucks: one closed (2) and one open (3). The chucks can turn and can be locked with a knob screw (6) at any angle between 0 and 45°. Turning chisels have symmetrical bevels on both sides. With this sanding guide, both bevels can be sanded without removing the tool from the guide. Turning the sanding guide upside down enables symmetrical sanding of bevels.
Closed chuck for turning chisels. The tool is fastened with a side knob (4). The upper knob (5) is not used.
The open chuck is designed for carving chisels and tools where the edge is ground transversely to the spindle. The tool is fixed with the top knob (5) of the frame. Since the chuck can be turned, it can also be used for short bevel chisels.
- EAN: 7392485002529
- SKU: 100011317
- Vendor material number: SVS-50
