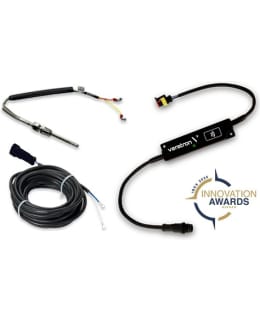

LINK UP GATEWAY - PYROMETER Input signal: 37mV Output signal: NMEA 2000® Nominal voltage: 12 V Technical information Operating voltage: 6 - 16.5 V Nominal voltage: 12 V (from NMEA 2000® network) Current consumption: = 100 mA NMEA 2000® LEN: 2 Protection class: IP X7 according to IEC60529 (when connected) Operating temperature: -30 °C to 80 °C Flammability: UL94-HB Measuring range: 100-900°C, 250-1650°F LinkUp sensor cable length: 25 cm NMEA 2000® cable length: 25 cm LinkUp Sensor-side plug: TE AMP Superseal 1.5 2 Pins - Female Case: 282080-1 Connectors: 282403-1 (2x) Seal: 281934-2 (2x) Extension cable LinkUp side plug: TE AMP Superseal 1.5 2 Pins - Male Case: 282104-1 Connectors: 282404-1 (2x) Seal: 281934-2 (2x) NMEA 2000® plug: DeviceNet Micro-C M12 5 Pins - male Compliance: CE, Reach, RoHS, UL94, ISO 8846: 1990 General information Link UP Configurator program download Google play Appstore Country of origin: CH Customs title: 90269000
EAN:
7640178729506
SKU:
103031527
Vendor material number:
VT-B00042301
Only available in the online store, not available in classic stores
Shelf location
