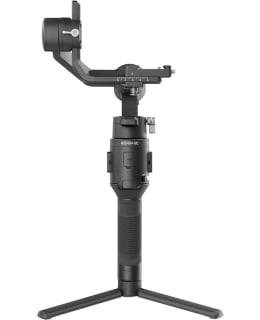

DJI Ronin-SC Pro Combo vakain

DJI Ronin-SC on kevyt 3-akselinen vakain peilittömille kameroille. DJI Ronin-SC painaa vain 1,1kg ja akun kesto on jopa 11 tuntia.

Ominaisuuksia:

• Panorama
• Timelaps
• Motionlaps
• Motion Control
• ActiveTrack 3.0
• Force Mobile

Kamera yhteensopivuuslista:

Sony A9, A6400, A7R III, A7 III, A7R II, A7S II, A7M II, A7S, A7, A6500, A6300, RX100 V.
Nikon Z6, Z7.
Canon EOS R, M50.
Panasonic GH5, GH5S, G9, GH3, GH4.
FUJIFILM X-H1, X-T2, X-T3.

Myyntipakkauksen sisältö:

Ronin-SC Gimbal
Ronin-SC Quick-Release Plate
Ronin-SC Part4 BG18 Grip
Ronin-SC Part1 Multi-Camera Control Cable (Multi-USB)
Ronin-SC Part 2 Multi-Camera Control Cable (Type-C)
Ronin-SC Part 3 Multi-Camera Control Adapter (Type-C To Micro USB)
Ronin-SC Part5 Camera Riser
Ronin-S/SC Part 8 Phone Holder
Ronin-S/SC Extended Grip Tripod (plastic)
Ronin-S/SC USB-C charging cable
Ronin-SC Lens Support
Ronin-S/SC Allen Wrench/Screws
Ronin-SC Storage Case
Ronin-S Part 3 Focus Wheels ( Pro Combo )
Ronin-SC Part 6 Focus Motor ( Pro Combo )
Ronin-SC Part 7 Focus Motor Rod Mount ( Pro Combo )
Ronin-SC Part 10 RSS Splitter ( Pro Combo )
Ronin-S Part 19 Focus Gear Strip ( Pro Combo )

Tekniset tiedot:

Accessory Connections    1/4” Mounting Hole, 3/8” Mounting Hole, Camera Control Port, Accessory Port, USB-C Port, RSA Accessory Expansion Port
Intelligent Battery    Model: RB2-2450mAh-7.2V
Type: 18650 LiPo
Capacity: 2450 mAh
Power: 17.64 Wh
Max. Battery Life: 11 h
Charging Time: 2.5 h (5 V/2 A)
Charging Temperature: 5° to 40°C (41° to 104°F)
Connections    Bluetooth 5.0; USB-C
Mobile Assistant Software Requirements    iOS 9 or above; Android 5.0 or above
Tested Payload    ≤ 2.0 kg
Angular Vibration Range    ±0.02°
Maximum Controlled Rotation Speed    Pan axis control: 180°/s
Tilt axis control: 180°/s
Roll axis control: 180°/s
Mechanical Endpoint Range    Pan axis control: 360° continuous rotation
Tilt axis control: -95° to +220°
Roll axis control: -202.5° to +112.5°
Controlled Rotation Range    Pan axis control: 360° continuous rotation
Tilt axis control: -90° to 145°
Roll axis control: ±30°
Working Current    Static current: 0.2 A
Working Frequency    2.400 GHz to 2.4835 GHz
Transmission Power    ≤ 8 dBm
Operating Temperature    -20° to 45°C (-4° to 113°F)
Weight    Gimbal: Approx. 830 g
BG18 Grip: Approx. 258 g
Tripod: Approx. 160 g
Gimbal Dimensions    Folded: 220×200×75 mm
Unfolded: 370×165×150 mm

DJI Ronin-SC på kevyt 3-akselinen vakain peilittömille kameroille. DJI Ronin-SC painaa vain 1,1kg ja akun kesto on jopa 11 tuntia.

Ominaisuuksia:

• Panorama
• Timelaps
• Motionlaps
• Rörelsekontroll
• ActiveTrack 3.0
• Force Mobile

Kamera yhteensopivuuslista:

Sony A9, A6400, A7R III, A7 III, A7R II, A7S II, A7M II, A7S, A7, A6500, A6300, RX100 V.
Nikon Z6, Z7.
Canon EOS R, M50.
Panasonic GH5, GH5S, G9, GH3, GH4.
FUJIFILM X-H1, X-T2, X-T3.

Myyntipakkauksen sisältö:

Ronin-SC Gimbal
Ronin-SC Quick-Release Plate
Ronin-SC Part4 BG18 Grip
Ronin-SC Part1 Multi-Camera Control Kabel (Multi-USB)
Ronin-SC Part 2 Multi-Camera Control Kabel (Typ-C)
Ronin-SC Del 3 Multi-Camera Control Adapter (Typ-C till Micro USB)
Ronin-SC Part5 Camera Riser
Ronin-S/SC Del 8 Telefonhållare
Ronin-S/SC stativ med förlängt grepp (plast)
Ronin-S/SC USB-C laddningskabel
Ronin-SC linsstöd
Ronin-S/SC insexnyckel/skruvar
Ronin-SC förvaringsväska
Ronin-S Del 3 Focus Wheels (Pro Combo)
Ronin-SC Del 6 Focus Motor (Pro Combo)
Ronin-SC Part 7 Focus Motor Rod Mount (Pro Combo)
Ronin-SC Part 10 RSS Splitter (Pro Combo)
Ronin-S Del 19 Focus Gear Strip (Pro Combo)

Tekniset tiedot:

Tillbehörsanslutningar 1/4” monteringshål, 3/8” monteringshål, kamerakontrollport, tillbehörsport, USB-C-port, RSA-tillbehörsexpansionsport
Intelligent batterimodell: RB2-2450mAh-7,2V
Typ: 18650 LiPo
Kapacitet: 2450 mAh
Effekt: 17,64 Wh
Max. Batteritid: 11 timmar
Laddningstid: 2,5 h (5 V/2 A)
Laddningstemperatur: 5° till 40°C (41° till 104°F)
Anslutningar Bluetooth 5.0; USB-C
Mobilassistentprogramvarukrav iOS 9 eller högre; Android 5.0 eller senare
Testad nyttolast ≤ 2,0 kg
Vinkelvibrationsområde ±0,02°
Maximal kontrollerad rotationshastighet Panoreringsaxelkontroll: 180°/s
Lutningsaxelkontroll: 180°/s
Rullaxelkontroll: 180°/s
Mekanisk ändpunktsområde Panoreringsaxelkontroll: 360° kontinuerlig rotation
Lutningsaxelkontroll: -95° till +220°
Rullaxelkontroll: -202,5° till +112,5°
Kontrollerat rotationsområde Panoreringsaxelkontroll: 360° kontinuerlig rotation
Lutningsaxelkontroll: -90° till 145°
Rullaxelkontroll: ±30°
Arbetsström Statisk ström: 0,2 A
Arbetsfrekvens 2.400 GHz till 2.4835 GHz
Överföringseffekt ≤ 8 dBm
Driftstemperatur -20° till 45°C (-4° till 113°F)
Vikt Gimbal: Ca. 830 g
BG18 Grepp: Ca. 258 g
Stativ: Ca. 160 g
Kardan Mått Vikt: 220×200×75 mm
Ovikt: 370×165×150 mm
